General Description

The StarLine M66 v2 is a micro car alarm system( called the system below) protects your vehicle from theft and robbery. It offers flexible control of car security, works with factory systems via the CAN bus, and monitors the vehicle (12/24V power) with immobiliser function.

You control the StarLine M66 v2 using the BT key fob, SMS commands, voice menu, StarLine 2 mobile app, or personal account on starline.online. Log in to the account with the username and password on your owner's plastic card (included in the kit). Owner authorization uses encrypted Bluetooth Smart (BLE) protocol (protected from electronic hacking) or enters the owner code via the car's standard buttons.

For authorization, use a tag or smartphone (works on iPhone with iOS 9+, Android with Bluetooth 4.0+), if it supports BLE (Bluetooth Low Energy) and is registered in the system.

You can track the vehicle's movements from a computer in your personal account on starline.online or in the StarLine 2 mobile app.

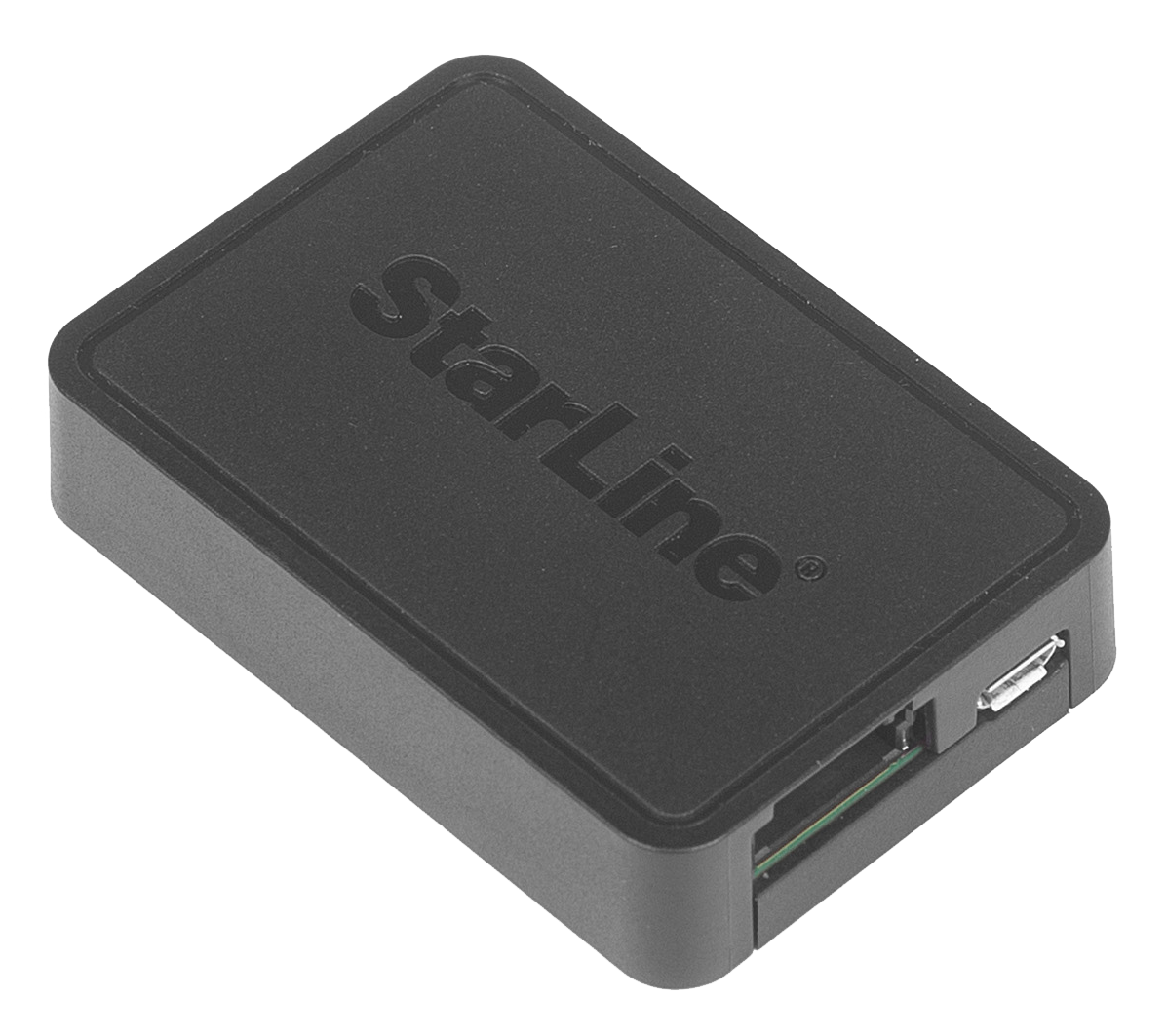

1.Main unit.png

Major benefits

  •  two SIM cards (1 SIM and 1 SIM-chip; SIM-chip support depends on the country where the micro car alarm is used)

  •  «Slave» mode to arm and disarm system with use of factory
    key

  •  driver authentication by wireless tag, or paired smartphone via Bluetooth Smart

  •  connecting the StarLine R7 code relay via the StarLine Bus for engine block control and expanding the functionality of the security system

  •  connecting the wireless radio relay StarLine R6 for hood lock control, siren operation, engine lockout, engine temperature measurement, and hood switch monitoring

  • additional owner authorization via tag, smartphone, or entering a secret code using the vehicle's standard buttons

  • dialogue code and 128 bit encryption keys, ensuring security against all existing code grabbers

  •  2CAN interface enables implementation of more functions via digital buses

  •  determination of the vehicle's coordinates, speed, and direction of movement

  •  determination of driving parameters and drive style scoring

  •  monitoring of vehicle parameters (mileage, error codes, onboard voltage, etc.)

  •  automatic transmission of data to the monitoring server

  •  data recording and storage a trip data in non-volatile memory (“black box”). The event log contains track information for the last 1000 km in urban driving and 5000 km on highways, up to 13.000 events.

  •  control of functions and display of parameters on the starline.online website and in the StarLine 2 mobile app

  •  high-sensitivity GPS+GLONASS module

  • universal programmable input and output channels

  • universal StarLine Master installer’s software for system configuration and updating

  • compact dimensions
