Master 2.36.0
New features
Added "External GSM/GPS module" mode
E96(V2)
Support for "External GSM/GPS module" mode has been added to StarLine E96v2 security systems (with serial numbers E96V2 S...) for joint operation with StarLine M66v2 or StarLine GSM+GPS Master 6v2 with firmware version 2.35.0 or higher.
Added support for parking heater (preheater) control in M66v2
M66(V2)
Support for parking heater (preheater) control has been added in tracker M66v2.

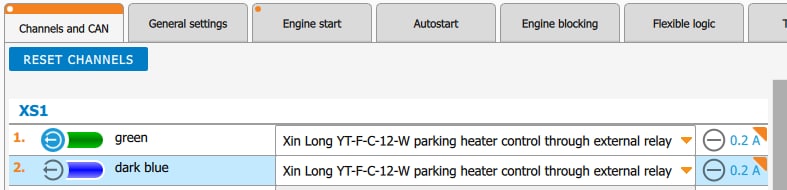

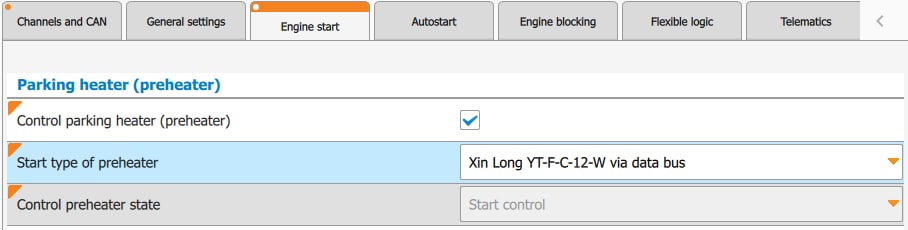

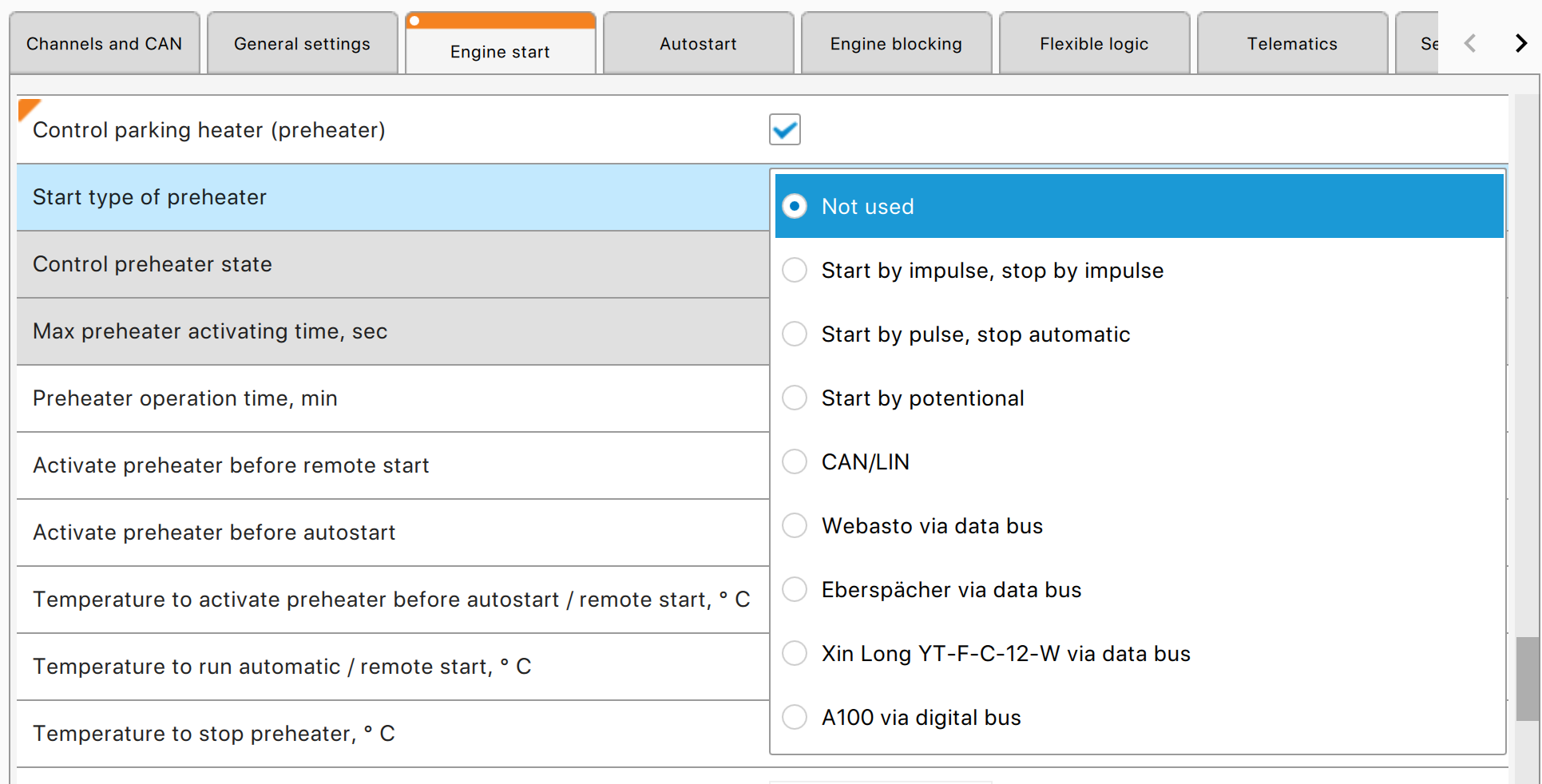

Control of Xin Long WATER heater (Model YT-F-C-12-W) supported when connected into the cut of signal wire with between timer and heater control unit with an external relay. Two wires must be used to connect. On "Channels and CAN" tab, set "A100 parking heater control through external relay" on the green or blue wire and connect it to the negative terminal of external relay coil that control the break in the signal wire. Assign "Xin Long YT-F-C-12-W via data bus (control unit)" on white-black wire and connect it to normally closed (NC) terminal of external relay. Connect common contact to the heater control unit, and normally closed (NC) contact to the timer. On "Engine Start" tab, in the "Parking heater (preheater)" section, enable "Control parking heater (preheater)". For the "Start type of preheater" parameter, select "Xin Long YT-F-C-12-W via data bus".
Setting example:

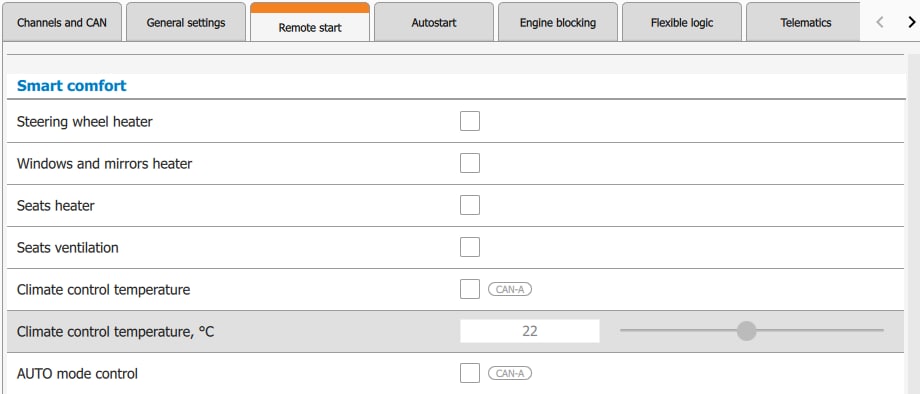

Added "Smart comfort" feature
A90, A90BT, AS90, E96(V2) KZ, E96(V2), GEN7, GEN7(V2), S96(V2)

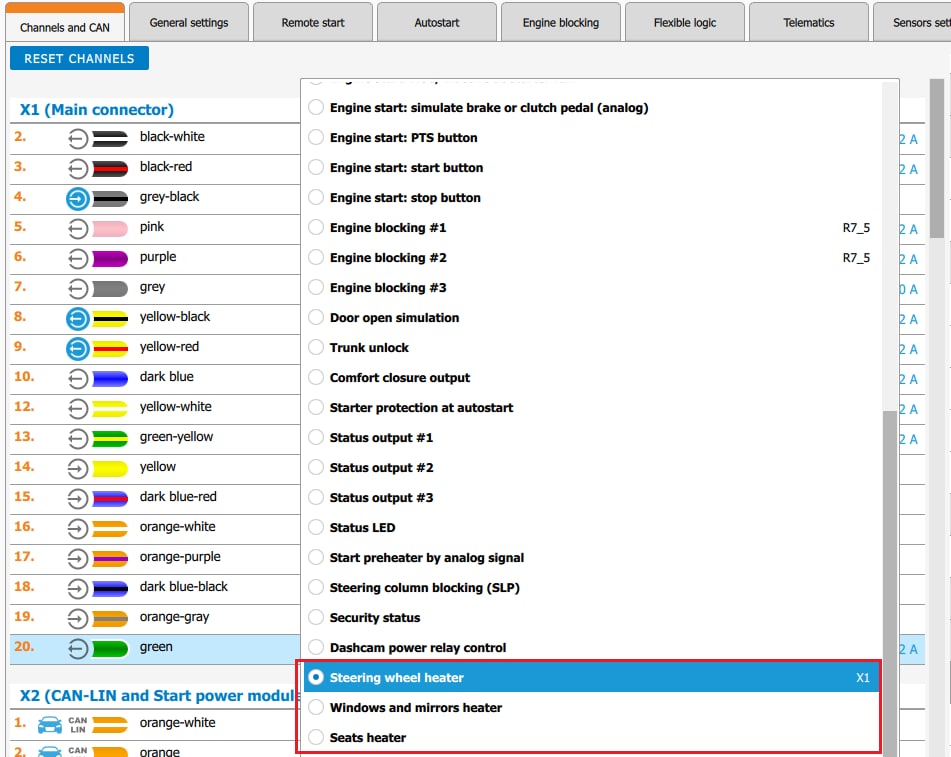

Selected "Smart Comfort" features will be activated during remote start and auto start by timer. Supported settings depend on vehicle trim and functions available CAN bus control. The corresponding features must be configured in the CAN interfaces or channels.
Fixed bugs
No
Known bugs
No
